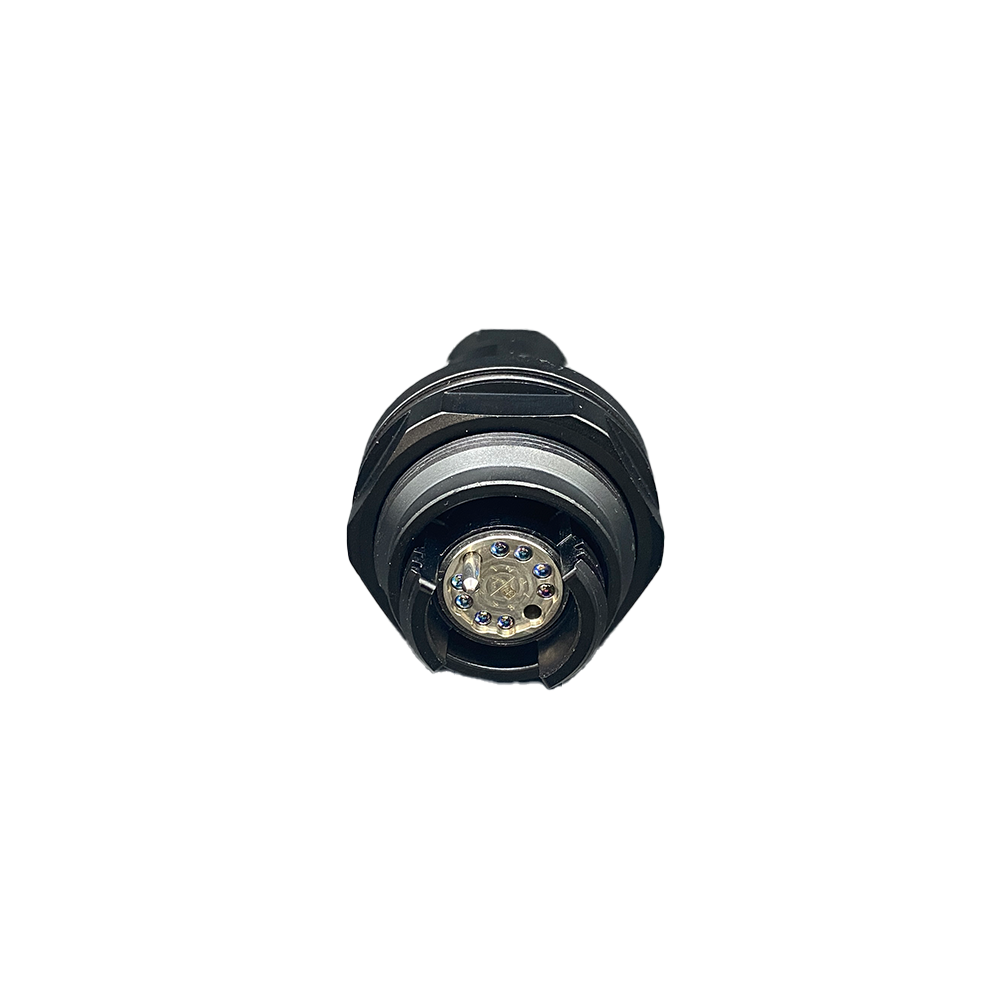

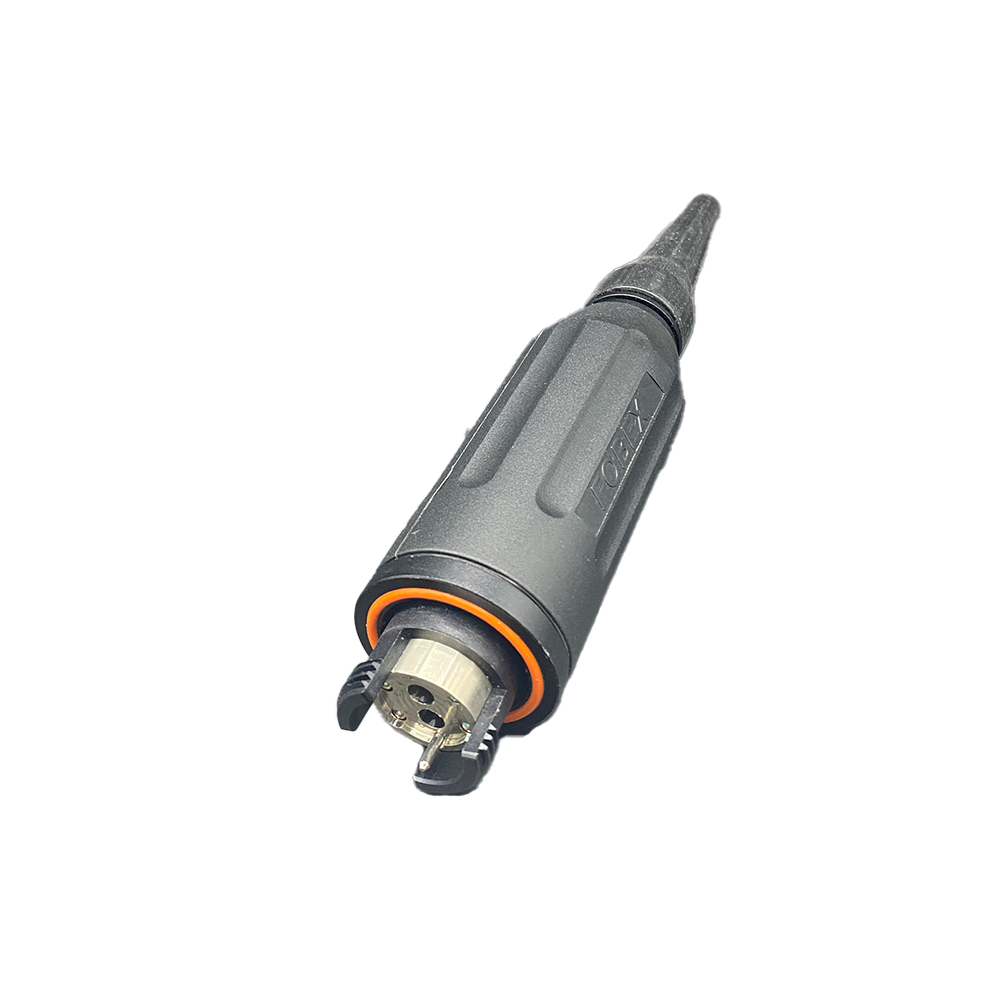

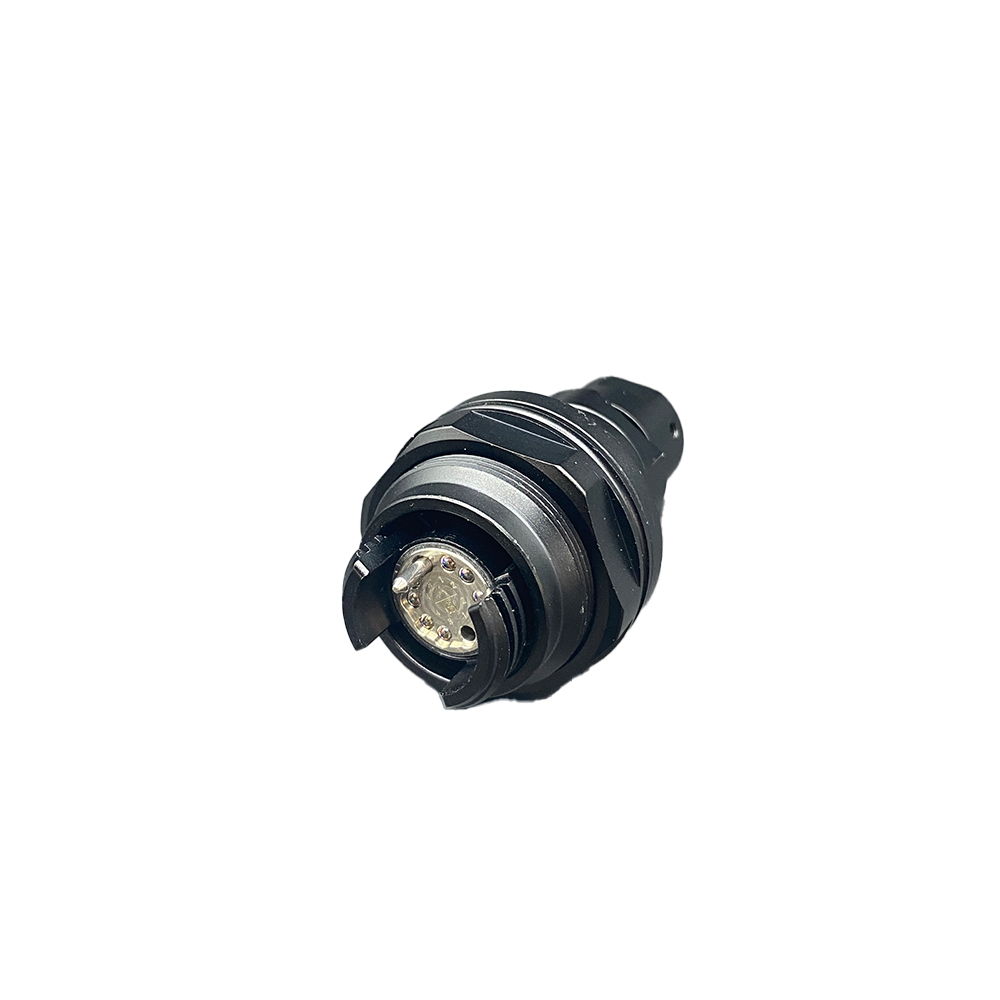

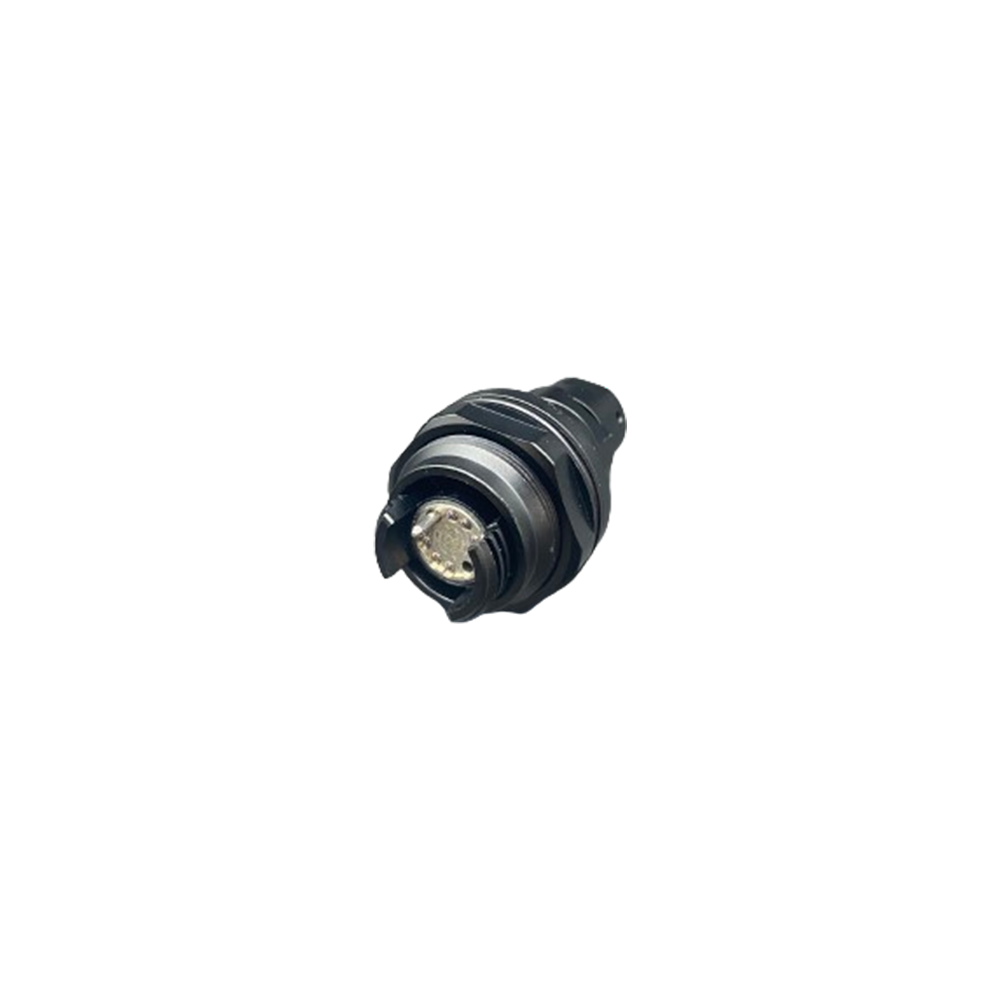

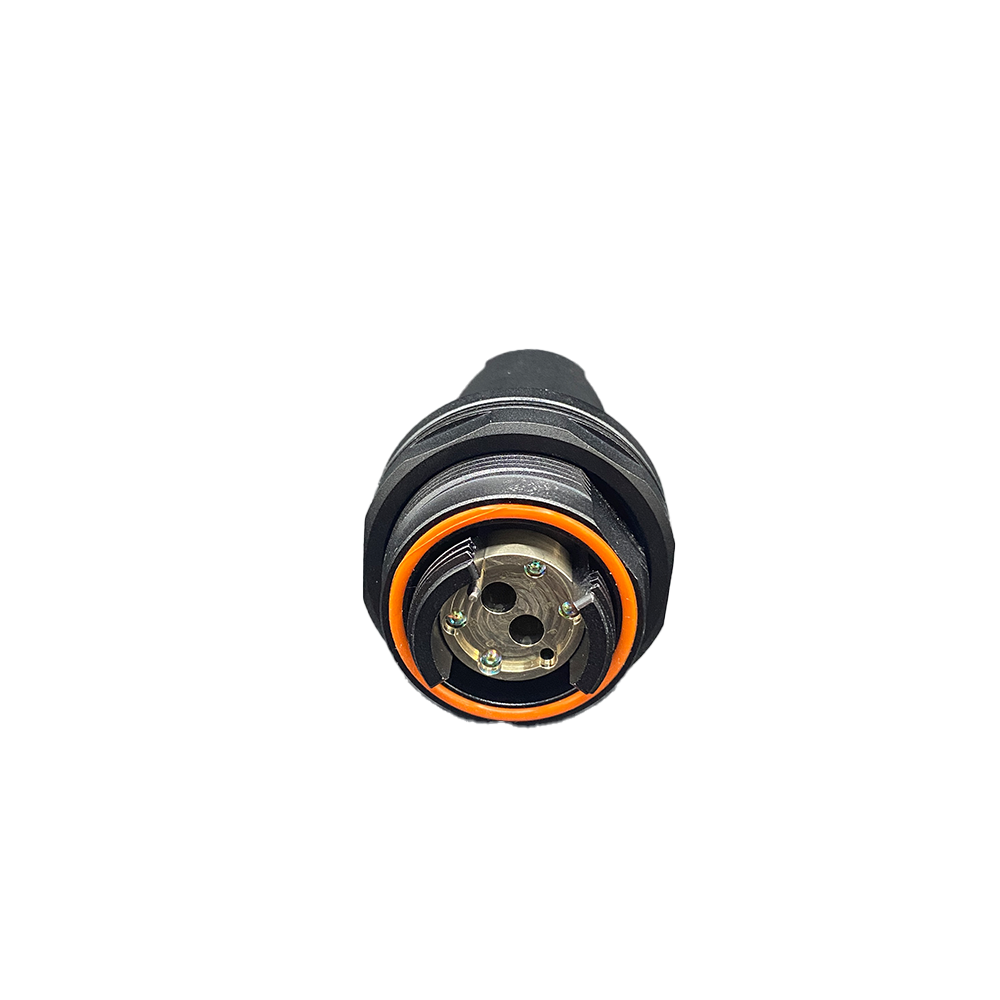

EXPANDED BEAM CONNECTORS(83526)
FOBEX is an Expanded Beam connector which is non-contact type optical connector. It is convenient for tactical operation and maintenance. It is usually used in outdoor circumstances such as Military, Ship, Offshore, Broadcast, Mining, Railway and Oil & Gas Plant industries.
FOBEX have excellent waterproof, dustproof properties(IP68), durability for strong vibration and external impact. This product is the best and ideal solution for harsh environments applications wherein optical interferences can become contaminated potentially causing damages to telecommunication network system
FOBEX 83526 has hermaphroditic structure. The Plug to Plug & Plug to Receptacle can be directly connected with each other without adaptors. It offers large number of mating cycles and superb performance.
Function
Navy shipboard, surface craft and submarines, Mobile tactical shelters electronic battlefield networks, Deployable outdoors in harsh environments, Applicable to plant, gas, petroleum industry, etc
Application
· Mission Critical Combat and Communication Systems
· Mobile Tactical Shelters Electronic Battlefield Networks
· Navy shipboard, Surface Craft and Submarines
· Mining and Tunneling Equipment
· Offshore, Subsea System
· Oil and Gas Plant industries
· Communicating and control system for Railway
Specification
| Parameter |
Multimode(@850nm/1300nm) |
Single mode(@1310nm/1550nm) |
| Insertion Loss |
1 to 4 channels 0.5 -1.0dB Max
6 to 24channels 0.5 -1.5dB Max |
1 to 4 channels 1.0(typical) -1.5dB Max
6 to 12 channels 1.0(typical) -2.0dB Max
16 to 24 channels 1.0(typical) -2.5dB Max |
| Return Loss |
> 20dB |
> 34dB(typical 40dB) |
| Operatingtemperature |
-40℃ to +85℃ |
| Storage temperature |
-55℃ to +85℃ |
| Durability |
3000 matings |
| Water Immersion |
IP68 |
| Free Fall Resistance |
500 Falls from 1.2m height |
| Vibration |
20-500Hz, 3 directions, 0.75mmamplitude@10g acceleration |
| Cable Retention |
1500N(Cable Dependant) |
Weight
| Type |
Plug |
Bulkhead |
| Mini |
70g |
65g |
| Junior |
120g |
110g |
| Senior |
160~300g |
150~255g |
| Max |
310ㆍ575g |
210ㆍ390g |
