Heavy cutting and fast grinding work
High durability of the spindle and sliding surface suitable for heavy cutting structure

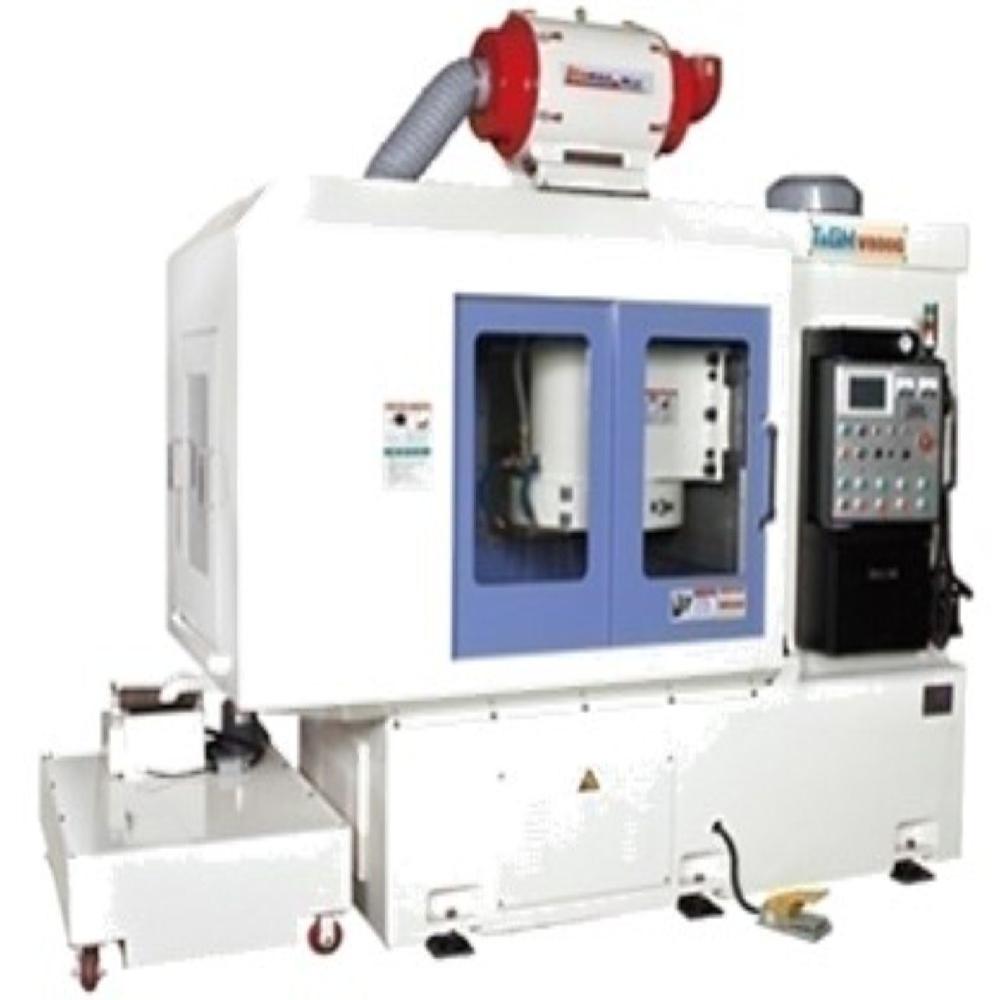

Maximum convenience by adopting two door cover(Option)
High performance, High efficiency, High reliability
High accuracy simultaneous grinding of both sides.
Mechanically and electrically combined type of layout configuration power.
Capacity : Swing-in Splash guard 1,150mm, Working piece inlet diameter 1,000mm, vertical range of wheel head 300mm,
Magnetic table : Loading weight of table 500kg, Diameter 800mm, Rotation 15(5~15),
Wheel : Diameter 495, Speed 1,150 rpm/min, Grinding in-feed 0.1~1.5/0~200/min –AC Servo motor, Hand wheel feed 0.2/0.001~0.099mm/rev, random setting,
Motor : Wheel drive motor 18.75kw, Table drive motor 1.5kw, Wheel head feed motor 0.75/1.5kw servo, Coolant motor 0.25kw, Power capacity 21.2kw, Approximate Machine weight 3,800kg
User of this machine : Tool machine, Grinder, Grinding machine, Automotive, Robot, Air condition, electric home appliances, etc.
