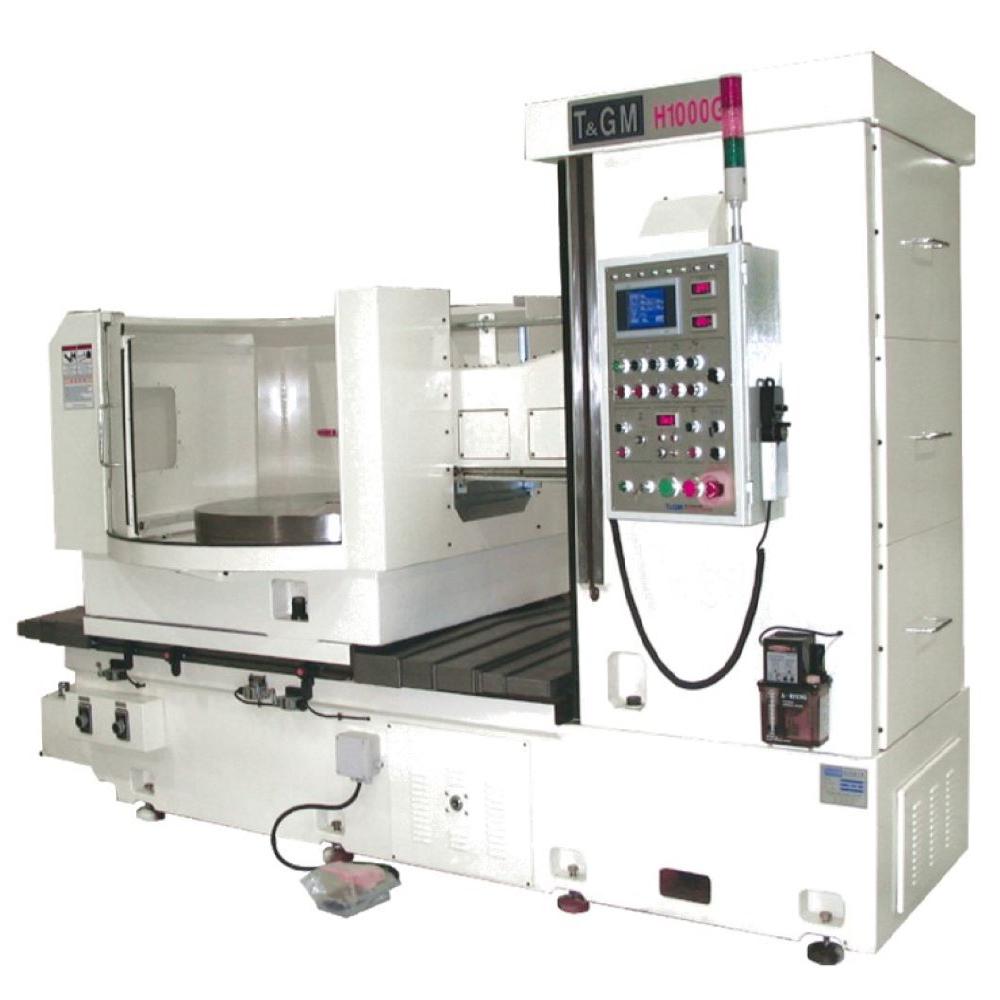

High performance, High efficiency, High reliability
High accuracy simultaneous grinding of both sides.
Mechanically and electrically combined type of layout configuration power.
Optimized for flatness, parallelism and dimension accuracy work
2 times higher efficiency than a general plain grinder
Minimization of worker's fatigue degree by maximizing work convenience through ergonomic structure and various switch arrangements
Capacity : Swing-in Splash guard 700mm, Vertical Range 230mm,
Vertical range of wheel head 180mm
Magnetic Table : Diameter 600mm, Rotation max 90 rpm,
Manual(Automatic) feed 0.002 ~ 0.2mm
Rapid traverse rate 300mm/min
Grinding wheel : Size 355pie x 45mm x 127.2 pie
Rotation speed 1,320rpm, Horizontal traverse 450mm
Traverse reate 50~2,000mm/min
Motor : Grinding wheel 5.5Kw x 4P, Hydraulic unit 2.2Kw
Vertical traverse : AC SERVO 1.0 kw, Table rotation motor : 1.5 kw
Lubrication(Table, Ram) 0.1 kw, Coolant 0.25 kw
User of this machine : Tool machine, Grinder, Grinding machine, Automotive, Robot, Air condition, electric home appliances, etc.
